UNICOM7000-XL
extra-large multi-task machining centre

Unicom7000-XL

4 m
Y-axis

4 m
diameter

Big advantages

This extra large capacity machining solution for turning and milling really big parts offers more clearance in the Y-axis and can be stepped up in the X-axis to 5 metres. Like the Unicom 7000, this multi-task portal machine manages to deliver high output without sacrificing accuracy or quality. The standard configuration includes a vertical carousel turning station, head changer and pallet changer for big pallet sizes. With less handling and fewer setups lead times are shorter, boosting productivity of extra large work pieces.

benefits

  • Bigger is better
  • Reliable processing
  • Repeatable accuracy

Bigger is better

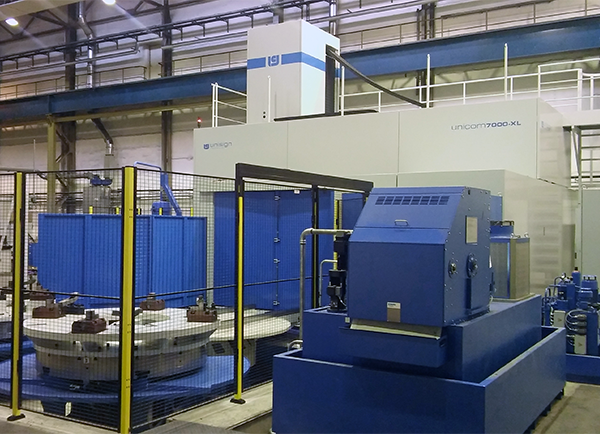

With a multi-task machining centre, extremely large components can be finished on the one machine. This cuts down handling time and results in shorter lead times. The Unicom 7000-XL is a highly adaptable and functional machine that removes large quantities of steel very quickly. Its pallet loading stations allow setup to take place during the machining cycle, which raises productivity even further.

Reliable processing

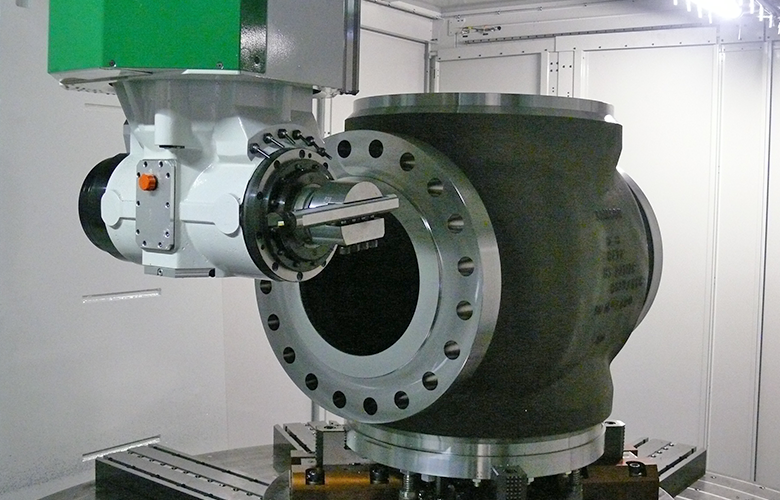

With its two-stage gearbox drive for milling and turning, the Unicom 7000-XL achieves high torque and high rotational speed. The machine’s ram with its turning tool adapter allows ‘plunging’ into the part as well as the use of short, stable tools. And the in-process measuring probe, which ensures reliable processing of tight fits, saves time.

Repeatable accuracy

The Unicom 7000-XL has an in-process measuring probe, which functions without needing a tool change. This also means that repeatability of the setup station can be guaranteed to a few microns. What’s more, even higher accuracies in end products are achieved since there are fewer machining setups to start with. For convenience, there is just one tooling system in the whole machine for the turning and milling operations. And for safety, there’s a fully enclosed cabin.

technical specifications

The Unicom 7000-XL has an extensive tool magazine and several accessories to enable turning, milling drilling and grinding. Various pallet sizes are possible on the same machine. It can be set up to operate with 4- or 5-axis machining, with multiple head variations.

  • Work Area
  • Spindle
  • Various
  • Accessories

Work Area

  • X-axis
    3.500 - 5.000 mm
  • Y-axis
    2.500 - 4.000 mm
  • Z-axis
    1.600 mm
  • Vertical clearance
    2.000 / 2.300 mm
  • Table
  • Table size
    2.000 - 4.000 ø mm
  • Swing circle
    3.000 - 4.500 ø mm

Spindle

  • Gear box driven spindle and values
    42 Kw
    6.000 min-1
    1.600 Nm
  • Carousel turning station
    70 / 95 kW
    33.000 / 70.000 Nm

Various

  • Tooling
  • Taper size
    HSK100A / Capto C8
  • Number of pockets
    # 97 - 200
  • Tool change time
    10 sec
  • Speed
  • Rapid traverse
    40.000 mm/min
  • Feed Rate
    5-40.000 mm/min

Accessories

  • Pallet changer
    standard
  • Right angular indexing head
    standard
  • Universal indexing head
    o
  • 5-axes configuration
    o
  • In-process measuring
    o

machines applications

  • Aerospace
  • General machining
  • Oil & gas
  • Energy
  • Train

Requiring one of the highest chip removal rates in the market, the aerospace industry needs high dynamic machines. The Unipent4000 and Unipro5000 for example are ideal for volume production in this demanding environment and can remove 10 litres per minute of aluminium while maintaining the highest accuracy. For extra large parts or engine components, the Uniport6000-HV, Uniport7000, Unicom6000 and Unicom7000 machines offer the best solutions.

applications for aerospace

Find out more

At Unisign we understand that our customers don’t just buy a machine, they buy a process. And price per part is key. So for general applications we offer high torque machines with high material removal rates, including 5-axis and 5-sided machining and a choice of moving table or palletized, depending on the footprint available.

applications for general machining

Find out more

Pumps and valves for the oil & gas industry can be highly complex parts to produce with seals, gaskets, flanges and requirements like spiral grooves and elliptical conical eccentric turning. The machining centres from Unisign, with their high degree of automation and specially designed software, are a unique solution capable of milling parts that others cannot.

applications for oil & gas

Find out more

Heavy duty turning, milling and drilling characterises the production of components for energy-producing equipment like (wind) turbines. So you need a machine that can take the load. A mill-turn machining centre like the Unicom6000, 7000 and the Uniport7000-MTC or a multi-functional Uniport6000 and 7000 are the ideal solution for producing these demanding parts.

applications for energy

Find out more

For everything from bogies to wheels and weld preparation to wheel carrier machining, Unisign has highly versatile machines like the Univers6000, Uniport6000 and Uniport7000. These moving column and gantry style machining centres are part of the machine tool program that have been designed to deliver extremely high capacity, dynamics, rapid acceleration and offer a generous working area.

applications for train

Find out more
