UNIPORT7000-MTC
multi-task machining centre

Uniport7000-MTC

Mill-Turn

capabilities

Powerful machining

Short lead times

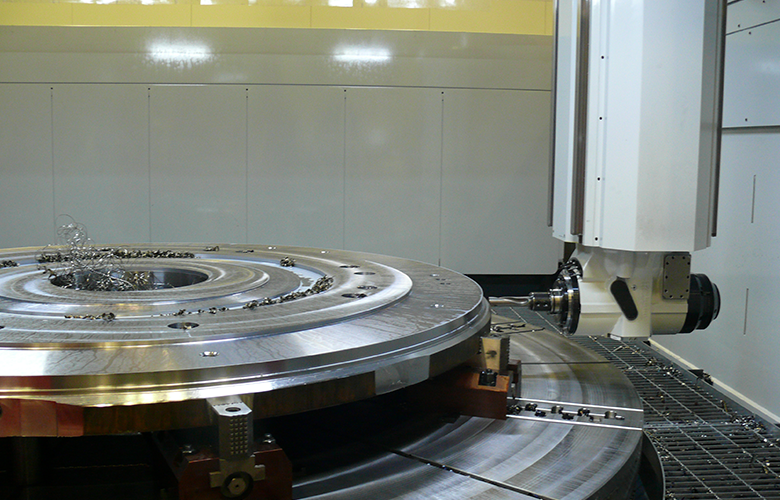

When you need the flexibility of mill-turn operations on both single part and series production, choose the Uniport 7000-MTC. This multi-task machine achieves extremely short lead times and very high accuracy, and is ideal for quick-response manufacturing. A high-rail gantry machine with a travelling bridge and stationary carousel turning station, it is built on our most flexible machine platform. It will perform 5-axis machining within a large working envelope, making it a truly cost-effective production choice for a wide range of applications. The innovative ‘box-in-box’ construction guarantees superb rigidity and very stable and accurate production processes.

benefits

  • One to the power of two
  • High capacity
  • Quick changeovers

One to the power of twoe

With a Unisign multi-tasking machine you effectively get two machines in one, reducing your capital investment. For such machines, flexibility and reliability go hand in hand with productivity. The wide choice of spindles, drive units and machining heads that comes with the Uniport 7000-MTC extends its capabilities enormously. And with features like a dedicated exchangeable head for turning tools that eliminates load on the bearings while turning, you can be assured of a longer machine life too.

High capacity

With its dedicated high-torque turning station, the Uniport 7000-MTC has enormous capacity, even for large diameter components. It can also take a very high load – up to 80 Ton on a 4.5 metre table – so that very heavy parts can be machined. And with the extended portal height of up to 2.6 metres, tall parts can also be handled with equal ease.

Quick changeovers

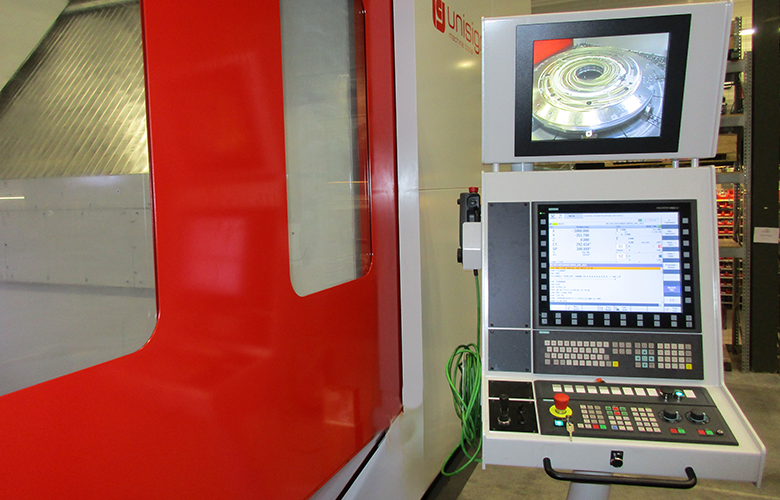

Good accessibility, with the table at floor level, means it’s easy for operators to step onto the table to change clamps and work pieces. And that enables really quick changeovers! It’s fully enclosed too, which not only keeps the working environment clean but also ensures a high level of safety.

technical specifications

The Uniport 7000-MTC can be configured in several ways, so there are different models to choose from. Similarly, there’s a huge selection of options, including spindles and machining heads. Get a taste of what’s possible below…

  • Work Area
  • Spindle
  • Various
  • Accessories

Work Area

  • X-axis
    3.000-6.500 mm
  • Y-axis
    2.000-3.500 mm
  • Z-axis
    1.600 mm
  • Distance spindle nose to table
    500-2.100 mm
  • Table
  • Table size
    2.000-6.000 ø mm
  • Swing circle
    2.500 - 6.500 ø mm

Spindle

  • Gear box driven spindle and values
    42/73 kW
    6.000 min-1
    1.600 Nm
  • Carousel turning station
    95 kW
    up to 135.000 Nm

Various

  • Tooling
  • Taper size
    HSK100A / Capto C8
  • Number of pockets
    # 52-206
  • Tool change time
    10 sec
  • Speed
  • Rapid traverse
    40.000 mm/min
  • Feed Rate
    5 - 40.000 mm/min

Accessories

  • Right angular indexing head
    o
  • Universal indexing head
    o
  • Various turning tool adaptors
    o
  • 5-axes machining
    o
  • In-process measuring
    o

machines applications

  • Aerospace
  • General machining
  • Oil & gas
  • Energy
  • Train

Requiring one of the highest chip removal rates in the market, the aerospace industry needs high dynamic machines. The Unipent4000 and Unipro5000 for example are ideal for volume production in this demanding environment and can remove 10 litres per minute of aluminium while maintaining the highest accuracy. For extra large parts or engine components, the Uniport6000-HV, Uniport7000, Unicom6000 and Unicom7000 machines offer the best solutions.

applications for aerospace

Find out more

At Unisign we understand that our customers don’t just buy a machine, they buy a process. And price per part is key. So for general applications we offer high torque machines with high material removal rates, including 5-axis and 5-sided machining and a choice of moving table or palletized, depending on the footprint available.

applications for general machining

Find out more

Pumps and valves for the oil & gas industry can be highly complex parts to produce with seals, gaskets, flanges and requirements like spiral grooves and elliptical conical eccentric turning. The machining centres from Unisign, with their high degree of automation and specially designed software, are a unique solution capable of milling parts that others cannot.

applications for oil & gas

Find out more

Heavy duty turning, milling and drilling characterises the production of components for energy-producing equipment like (wind) turbines. So you need a machine that can take the load. A mill-turn machining centre like the Unicom6000, 7000 and the Uniport7000-MTC or a multi-functional Uniport6000 and 7000 are the ideal solution for producing these demanding parts.

applications for energy

Find out more

For everything from bogies to wheels and weld preparation to wheel carrier machining, Unisign has highly versatile machines like the Univers6000, Uniport6000 and Uniport7000. These moving column and gantry style machining centres are part of the machine tool program that have been designed to deliver extremely high capacity, dynamics, rapid acceleration and offer a generous working area.

applications for train

Find out more
