UNIPORT7000
Flexible portal CNC machining centre
Uniport7000
- 5-axis machining capability
- Superb rigidity and accuracy
Flexible and economic
The UNIPORT7000 is the economic solution to flexible manufacturing. This high-rail gantry machine with its travelling bridge and stationary table is our most flexible machine platform. It will perform 5-sided machining inside the component and has short changeover times and a large working envelope, making it a truly cost-effective production choice for a really wide range of applications. The innovative ‘box-in-box’ construction guarantees superb rigidity and very stable and accurate production processes.
Watch the video: Your ideal choice for machining LARGE components
Benefits
One to the power of two
With its high capacity tool magazine and machining heads all ‘on board’, the UNIPORT7000 is capable of extremely fast changeover times. Add component loading from the side – thanks to the accessible machine bed – and you’ll see why production times with this machine are really short, keeping productivity high.
High accuracy
The portal construction, with its guideways and drive system on both sides, provides real stability, while work-piece clamping is performed easily – mostly in the assembly orientation. This ensures a high level of accuracy. The wide choice of spindles and machining heads extends the flexibility of this CNC machine enormously.
Fewer setups
The 5-sided machining, even inside the component, reduces the number of setups required in the UNIPORT7000. And since the machine is built into the factory floor, it’s easy for operators to step onto the table to change clamps and workpieces.
Gallery

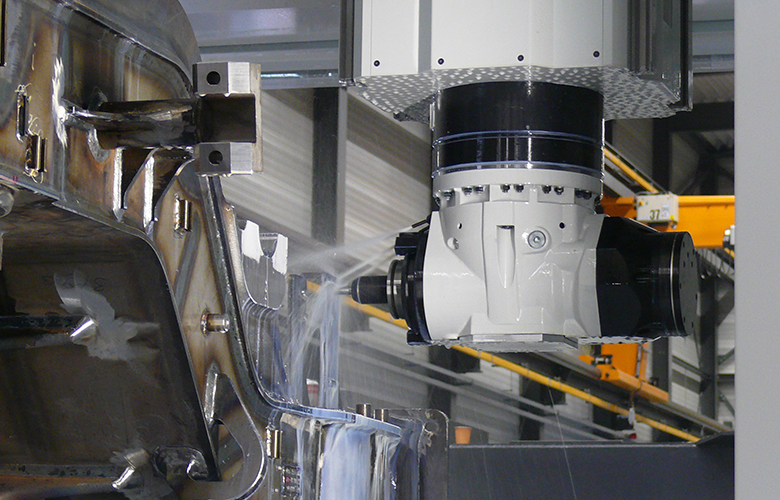

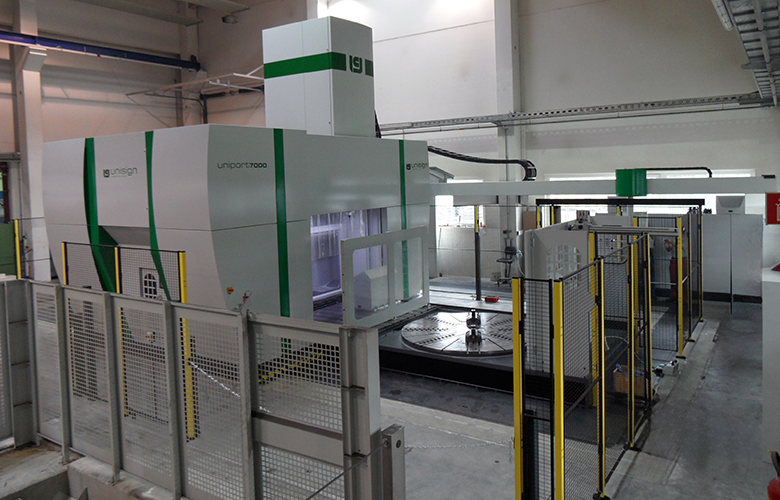

UNIPORT7000
UNIPORT7000
UNIPORT7000
UNIPORT7000
UNIPORT7000
Customer quotes
Unisign delivers extremely reliable milling machines and we certainly enjoy working with them. They are well-built and, when used in production, are largely fault-free. It makes me happy to have the chance to operate a machine as robust and as precise as this.
Mr. Stefan Wäckerlin - Stadler Winterthur - Switzerland
We are very satisfied with the Unisign machines. What we like about them the most is that programming and using the machines is very easy. The design of the machines from Unisign is also well-thought-out from start to finish. They consistently use specific configurations, without exception. That is why the machines from Unisign are so user-friendly.
Mr. Sergej Koval - Brück GmbH - Germany
From the outset, Unisign offered us the best support we could ever have expected throughout the whole project; not just with the hardware, but also when it came to integrating the software into our environment. We are also extremely satisfied with the level of customer service.
Mr. Willi Maier - Homag GmbH Schopfloch - Germany
Accuracy and process stability are hugely important for us. We have already produced large components over 1500 mm long on our UNIPORT7000, to an accuracy of 5 µm in terms of straightness and parallelism. The components that we work on call for a very high degree of accuracy. That’s why we use machines from Unisign.
Mr. Hans-Peter Weise - Gemag Gelenauer Maschinenbau - Germany
Technical specifications
This CNC Machine, the UNIPORT7000, can be configured in several ways, so there are different models to choose from. Similarly, there’s a huge selection of tools, spindles and machining heads.
Work area
-
X-axis6.000 - 24.000+ mm
-
Y-axis2.500 - 6.500 mm
-
Z-axis1.600 mm
-
Vertical clearance1.500 / 1.750 / 2.000 / 2.500 mm
-
Width between columns2.000 - 6.000 mm
Spindle
-
Gear box driven spindle42/73 kW
6.000 min-1
1.600 Nm
Various
-
Tooling
-
Taper sizeHSK-A100
-
Number of pockets# 48-330
-
Tool change time10 sec
-
Speed
-
Rapid traverse40.000 mm/min
-
Feed Rate5 - 40.000 mm/min
Accessories
-
Right angular indexing headstandard
-
Universal indexing heado
-
5-axes configurationo
-
Carousel turning stationo
-
Raised guidewayso
-
Siemens / Heidenhaino
CNC machine applications
- Logistics
- Energy
- General machining
We have established a world leading position in front axle machining. Truck manufacturers and suppliers use our UNITWIN CNC machine to produce more than 2 million front axles every year.
For everything from bogies to wheels and weld preparation to wheel carrier machining, Unisign has highly versatile machines like the Uniport6000 and Uniport7000. These gantry style machining centres are part of the machine tool program that have been designed to deliver extremely high capacity, dynamics, rapid acceleration and offer a generous working area.
Heavy duty turning, milling and drilling characterises the production of components for energy-producing equipment like (wind) turbines. So you need a CNC machine that can take the load. A mill-turn machining centre like the Unicom6000, Unicom7000 and the Uniport7000-MTC or a multi-functional Uniport6000 and Uniport7000 are the ideal solution for producing these demanding parts.
Pumps and valves for the oil & gas industry can be highly complex parts to produce with seals, gaskets, flanges and requirements like spiral grooves and elliptical conical eccentric turning. The machining centres from Unisign, with their high degree of automation and specially designed software, are a unique solution capable of milling parts that others cannot.
At Unisign we understand that our customers don’t just buy a CNC machine, they buy a process. And price per part is key. So for general applications we offer high torque machines with high material removal rates, including 5-axis and 5-sided machining and a choice of moving table or palletized, depending on the footprint available.
