triple offset butterfly valve

a wide choice in CNC machining centres
for energy equipment customers

Unisign CNC machining centres are ideal for producing large, heavy components for the energy (oil & gas) industry, from turbo charge casings to sub-sea valves and pump housings. The Unicom6000, Uniport6000 and Uniport7000-MTC, which all offer combined operations from one machine, are well suited to the manufacturing of such components; the choice of machine depends on the requirements of your specific application.

quality and productivity

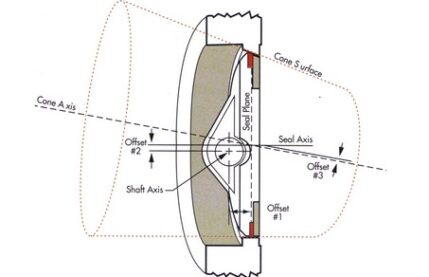

The multi-task Unicom6000 and 7000 have just what you need for machining triple offset valves. With the synchronised movements of X, Y, Z and C-axis, the machine can perform elliptical, conical and eccentric turning. Parts like butterfly valves. The components can be precisely aligned and centred on the pallet loading station, eliminating time-consuming measurements inside the machine.

Features include:
• Ram design allows ‘plunging’ for inside operations
• Elliptical, conical and eccentric turning
• 5-axes machining
• Pallet changer
